1、 Introduction to Principles

The combination of medium pressure ultraviolet and ozone sterilization is an effective disinfection method. The brightness of medium voltage ultraviolet light is dozens of times higher than that of low voltage lamps. Medium pressure ultraviolet radiation has a wide wavelength range and can strongly damage the DNA and RNA of viruses.

Ozone is a powerful oxidant that can oxidize enzymes in the body, disrupt bacterial metabolism, and disinfect without side effects. UV rays are also present.

The UV+ozone composite disinfector can kill various bacteria and other organisms, achieving ideal disinfection effects.

2、 Product Features

Large scale disinfection: Permanently kill chlorine resistant microorganisms such as Pseudomonas aeruginosa, Escherichia coli, Pseudomonas aeruginosa, Cryptosporidium, amoeba, bacteria, etc., without developing drug resistance

Strong disinfection ability: Avoid microbial DNA photoreactivation or dark repair, and permanently kill microorganisms.

Low cost: plug and play disinfection without the use of additional materials.

Safety: The driving mechanism of the UV+ozone sterilizer is sealed with glue. It is waterproof and has an insulation layer inside. If the lamp tube ruptures, the sterilizer will automatically cut off power to protect your safety.

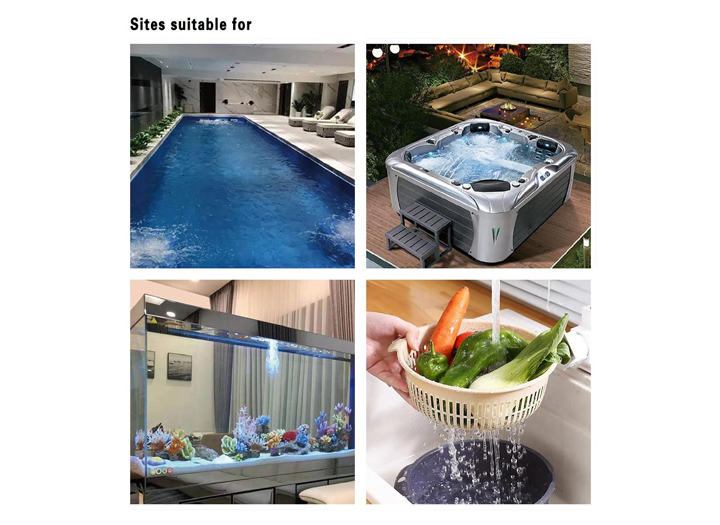

3、 Installation details and application scope

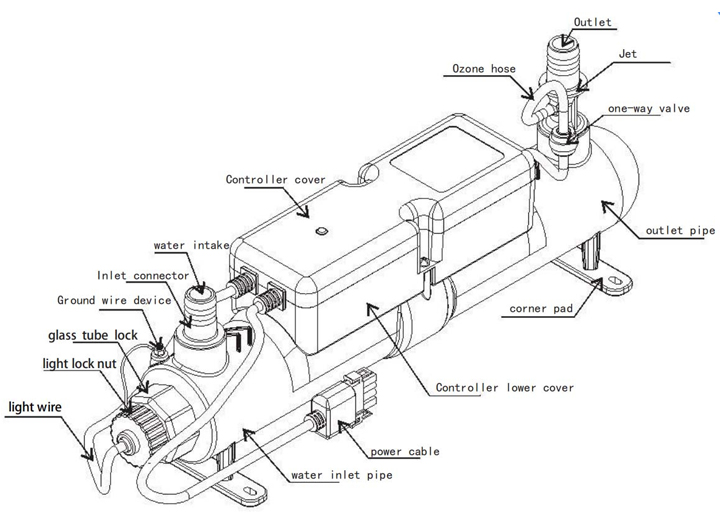

Disinfector connection diameter: internal 3/4 ", external Φ 20mm.

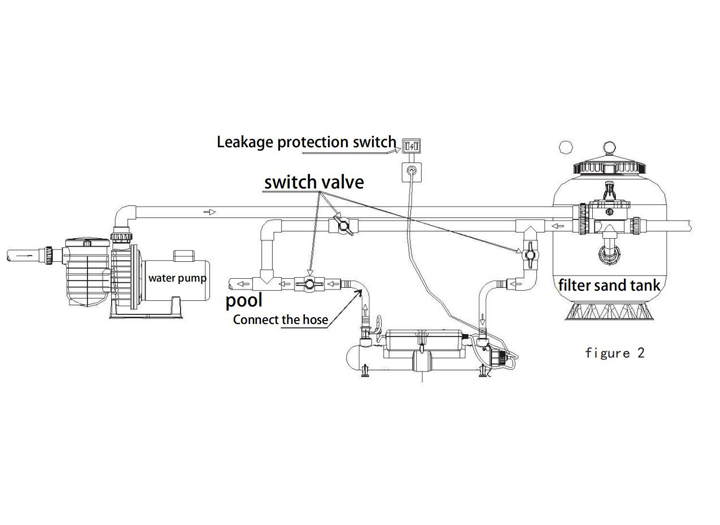

Close the pipeline valve and clean the connection point.

If using hoses, the locking ring must be tightened and tightly sealed.

Working power supply: AC230V, 50/60Hz. It must be firmly connected to the ground.

Working temperature ≤ 90 ℃. Avoid water entering the control panel box. The water inside the sterilizer can freeze and cause damage.

The blue indicator light indicates normal operation, while the red indicator light indicates a malfunction.
